Chapter 20    Multiloop Control: Effects of Interaction

Home    Index

Check Your Reading             Study Questions             Thought Questions

The questions will be categorized according to the key concepts in the chapter.

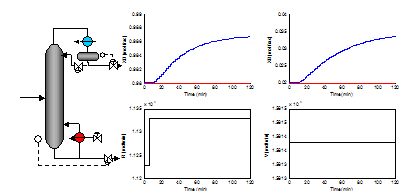

Modelling Controllability
Interaction Dynamics & Stability





















Check Your Reading

Solidify the Concepts
20.1
All multivariable control is implemented with many single-loop PID controllers, (i.e., multiloop control).

Controllability

TRUE            FALSE

















20.2
We often select multiloop control design because it

Controllability

Every plant should operate safely with only multiloop control.





gives the best performance



 is the only possible approach.


 retains the well know PID controller.

 is simple to implement by the engineer and to use by the operator.





















20.3
Process interaction occurs when

Interaction

Note: Interaction is important in multivariable control!



one CV influences more than one CV



 one valve influences more than one CV


 one valve influences all CV's

 always exists, there is no need to check.





















20.4
Processes with multiple manipulated and controlled variable can be modelled

Modelling
Recall that we use modelling to understand the process and design controls.



using only empirical methods





 using only fundamental methods


 using either fundamental or empirical methods

by copying a model from the textbook





















20.5
The operating window is

Modelling







a window for observing the plant from the control building.





 a two-dimensional plot of process variables


 a range of attainable steady-state values for process variables.























20.6
A process is controllable, as defined by Marlin (2000), if

Controllability





It is possible to maintain CV(t) = SP(t) throughout a dynamic transient.





It is possible to maintain CV =SP at a new steady state after a disturbance


 It is possible to maintain CV =SP at a new steady state after a disturbance using PID control





















20.7
The relative gain provides an indication of

Interaction





How process gains change due to interaction







All types of interaction






Two way interaction

Deviation of multiloop from single-loop dynamic behavior





















20.8
Interaction affects stability for multi-loop control.

Dynamics

TRUE            FALSE
