Study Questions

Apply Your Knowledge
20.9
To control three controlled variables you need to adjust the minimum of

Controllability

Engineers must provide sufficient valves in the process design!




1 valve




 2 valves



 3 valves

4 valves

























20.10
To control three controlled variables, you can adjust a maximum of

Controllability



2 valves





3 valves






4 valves

none of the above



























20.11

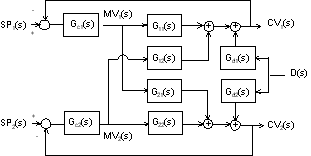

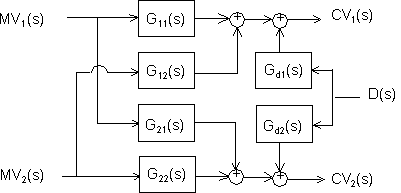

For the 2x2 system in Figure 20.8, what is true if no interaction exists?

Interaction

If no interaction exists, the two loops are completely independent.



all Gij(s) = 0



 G12(s) = G21(s) = 0


 G11(s) = G22(s) = 0

 none of the above



















20.12
For the 2x2 system in Figure 20.8, if all the steady-state gains are non-zero ( Kij <> 0), the system is controllable.

Controllability

TRUE            FALSE



























20.13
The test for controllability (det(K) = 0) is

Controllability



valid for all disturbances



 valid for all disturbances of small magnitude


 valid for all set point changes

 valid for all set point changes of small magnitude



















20.14

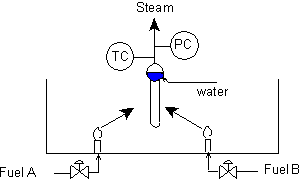

For the process boiling water in the figure, how should the pressure and temperature be controlled

Controllability

Process plants use steam for power and heat; steam is important!





Control P with vA and control T with vB



 Control P with vB and control T with vA


either of the above will work

none of the above



















20.15
The following design will control the pressure and flow of a fluid in a pipe.

Controllability

TRUE            FALSE































20.16
The following design will control the two flow rates of a fluid in a pipe.

Controllability

TRUE            FALSE





















20.17

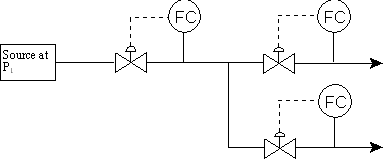

The following design is adequate for splitting  the two flows

Controllability

TRUE            FALSE





















20.18
The CSTR in Example 13.12 has the steady-state gain matrix below. Which of the multi-loop control designs will function correctly, i.e., could yield zero-offset, stable control?

Interaction &
Controllability



Control T with vC and control Ca with vA



 Control T with vA and control Ca with vC


 either of the above will work

none of the above























20.19
We want to design controllers for temperature and composition in the non-isothermal CSTR shown below. What is the minimum number of process reaction curve experiments that we must perform?

Modelling



One



 Two




 Three



 Four























20.20

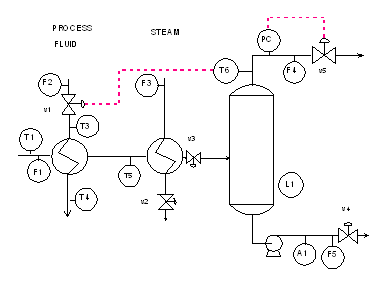

The pressure and temperature can be controlled to independent values by the flash drum control system in the figure.

Controllability

TRUE            FALSE
