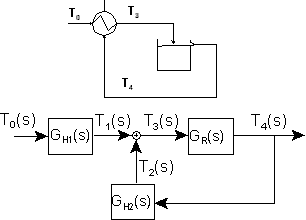

The dynamic behavior of the recycle system is given in the equation from the example T4(s)/T0(s) = GR(s)GH1(s)/(1-GR(s)GH2(s)) Substituting the values for this case gives T4(s)/T0(s) = We see that the dynamic response for this recycle system is only slightly different from the system without recycle. See if you can explain why.
|
![]() |
