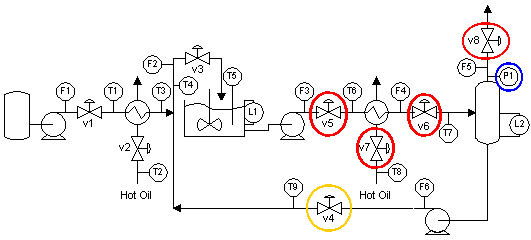

The flash drum pressure can be controlled using feedback because once again there are valves in the process which have a causal effect with the pressure.   The controlled variable is in blue, the strong manipulated vaibles are in red, and the very weak manipulated variable is in orange.
